HAProxy usage for SAP rescue instance on AWS

In our landscape for S/4Hana systems we use dedicated servers. They are provided by Hetzner Online GmbH.

As any responsible company, we have an adequate backup solution paired with a RAID configuration. We keep our backups both on Hetzner servers and as an additional safety measure on Amazon S3.

Unfortunately, this does not provide full protection against hardware malfunctions of components such as the motherboard, RAM or CPU.

We also keep a secondary SAP instance on AWS EC2. Should our Hetzner server happen to be completely inaccessible, we can quickly bring the AWS EC2 instance online with the usage of backups kept on AWS S3. Our configuration was already described before here:

Enterprise applications with optimized costs – SAP HANA-based systems on Hetzner Online

All this leaves us with the issue of providing the users with information on how to connect to the server. Giving them new configuration after every time we start the AWS EC2 instance would be confusing and disruptive. In order to overcome that we use HAProxy. This way the users get only one configuration and we can use that to redirect them to the server of our choice.

Installation

The deployment of HAProxy is quite straightforward. We use a Ubuntu server also hosted on AWS EC2. Before installation we first check the available version by:

apt show haproxy

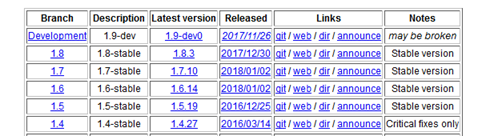

The standard repository offers a bit older version, the currently supported versions are:

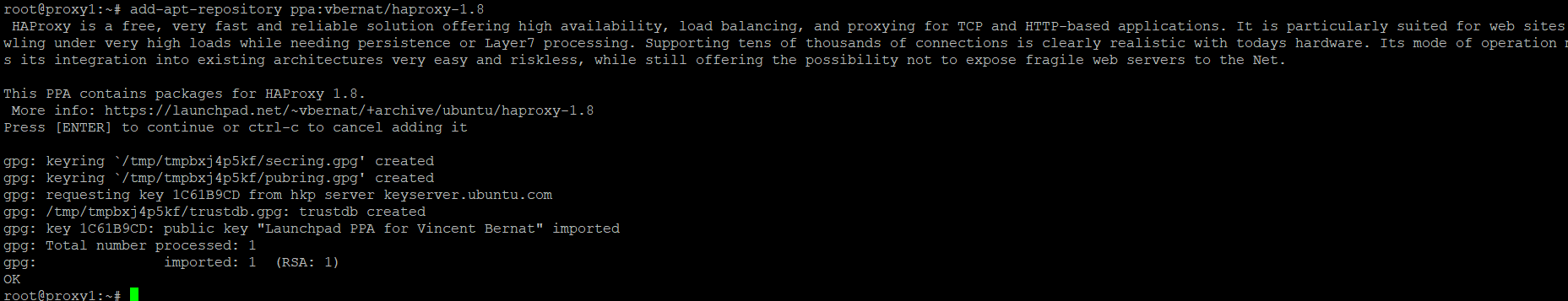

In order to overcome that, we add a new repository for HAproxy by:

add-apt-repository ppa:vbernat/haproxy-1.8

Next we update our apt configuration by:

apt-get update

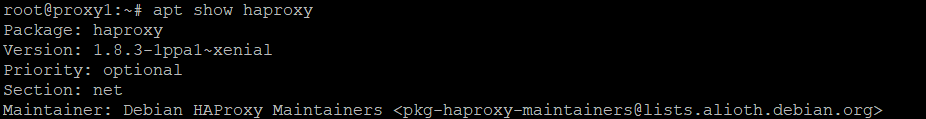

Now when we check again the available version is higher:

apt show haproxy

What is left is to install the package by:

apt-get install haproxy

You can check if it is correctly installed by

haproxy -v

Configuration

First backup the configuration file by:

cp -rp /etc/haproxy/haproxy.cfg /etc/haproxy/haproxy.cfg.backup

Now we can start reconfiguring. For this I use vi, but nano is also a good editor if you prefer it.

vi /etc/haproxy/haproxy.cfg

Below is the configuration we use:

global
   log /dev/log    local0
   log /dev/log    local1 notice
   chroot /var/lib/haproxy
   stats socket /run/haproxy/admin.sock mode 660 level admin expose-fd listeners
   stats timeout 30s
   user haproxy
   group haproxy
   daemon

defaults
   log     global
   mode    tcp
   option  tcplog
   option  dontlognull
   timeout connect 5000
   timeout client  5h
   timeout server  5h
   balance roundrobin

listen sh1
   bind proxy1.domain.com:3202
   server sh1_host 52.58.185.145:3202 check
   server sh2_failover 35.157.123.181:3202 check

listen stats
   bind :80
   mode http
   stats enable
   stats hide-version
   stats realm Haproxy\ Statistics
   stats uri /
   stats auth haproxy:<password>
   stats refresh 5s

Parameter description

Let us describe the entries in the config file in more detail.

Program parameters

The first section is called global. Here are the settings defining the operation of the program as a process. I left this as default. This part of the config shows parameters responsible for running the process as a daemon, there is a group and a user defined for that. Also logging is configured here. The default config will log to /var/log/haproxy.log.

Default parameters

This section is called defaults – these settings are inherited by the sections frontend/backend/listen. But they can be changed individually for all of them.
I redefined most of the parameters here:

mode tcp
default is http and is not best suited for SAPGui

option tcplog
this will enable advanced logging of TCP connections, default was httplog

option dontlognull
omit logs for sessions for which no data were exchanged between the client and the server

timeout connect 5000
the time limit for a successful server connection in ms

timeout client 5h & timeout server 5h
those two parameters were set to 5h (hours) so session with SAPGui will not be terminated too soon, default was 5 minutes

balance roundrobin
this will select servers in turns one after another

Connections configuration

Connections can be configured in the sections called frontend and backend. But as we use a more basic configuration, those two sections can be combined into one.
The combined section name is listen sh1. I used listen <sid>, but this can be defined according to your preferences.

bind
this defines incoming connections along with the tcp port. I used a DNS entry but IP will also work. If using DNS remember entries must also be defined in /etc/hosts.

server
here you define a unique name for the entry and where the connections should be routed to. An additional parameter for server is check. It forces availability check of a given connection before switching the traffic to it

Additional connections

To configure more frontend/listen section it is not possible to use DNS aliases pointing to one IP (this option is only supported for HTTP/HTTP protocols).

To have multiple server clusters working on one HAProxy instance they need to be connected via differed ports or IPs.

The following configuration can be added to the file:

listen <sidN>
   bind proxyN.domain.com:3200
   server <sidN>1 <IP of first server>:3200 check
   server <sidN>2 <IP of next server>:3200 check

The limitation is that proxyN.domain.com cannot point to the same address as the previous one proxy1.domain.com. A separate IP is required (additional NIC will be needed).

Alternatively, when using the same IP (one NIC) the port needs to be changed to a different one. For example if in previous listen section 3200 was used, now 3201 should be selected:

listen <sidN>
   bind proxyN.domain.com:3201
   server <sidN>1 <IP of first server>:3200 check
   server <sidN>2 <IP of next server>:3200 check

Monitoring

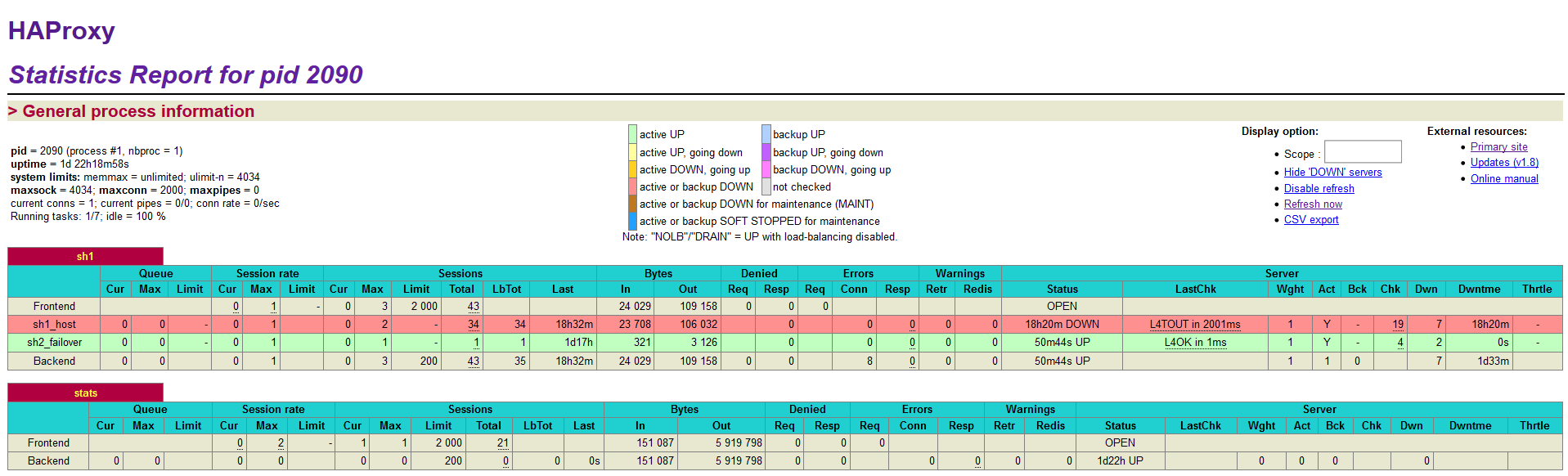

HAProxy has also built in monitoring capabilities with the use of a web interface. The interface looks like this:

The section responsible for it in the our configuration is called listen stats.

This section is not mandatory for our main purpose but is nice to have. You define here among other things the port on which the console will be working. I used the standard http port. You also define the username and password as well as the time interval for refreshing the site.
In our case you enter the console by going to the address http:<HAProxy server IP>:<definedport><defined uri> for example: http://proxy1.domain.com/
